Chiller Maintenance

►Advantages

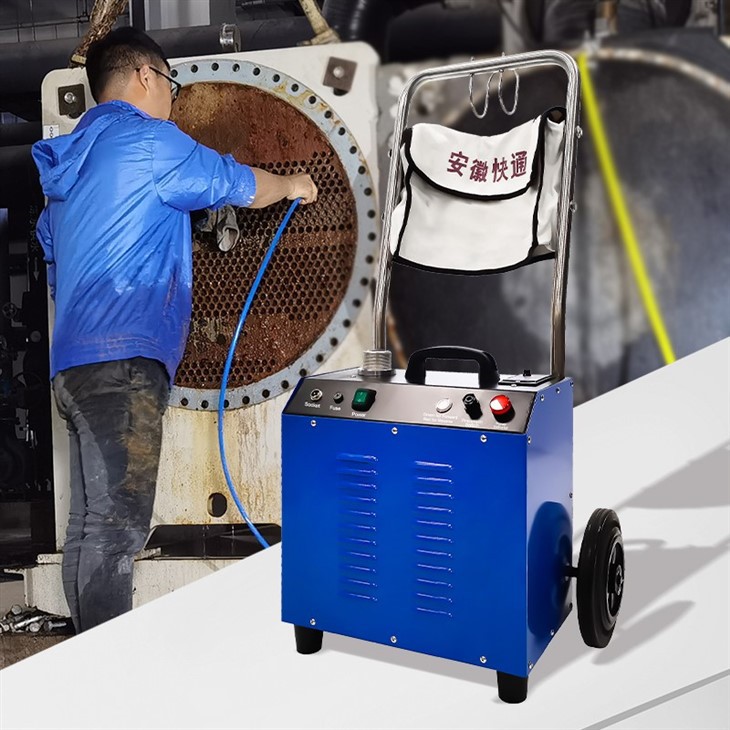

1. KT-202 Chiller Maintenance machine is wheeled portable designed.

2. 550W powerfull can clean blocked tubes.

3.  Adjustable speed (0-1400 RPM).

4. Chiller Maintenance machine can be used with the alloy drill head to dredge the blocked tubes.

5. The water is directly inlet on the flexible shaft, so the water does not need to enter the main unit, which can protect the main engine.

6. Water spray design while brushing, water can wash the dirt that can be washed down the pipe.



★Fast powerfull rotation

To prevent to dredge the blocked tubes



★Brush speed is stepless adjustment

To improve the cleaning speed Applicable to a wider range of working conditions



★Water is inlet on the shaft

Spray water while brushing Have a better cleaning effect



★Pedal pneumatic switch

Avoid electric shock during cleaning operation Easy to use



►Specification



►Product Details



►Application



KT-202 Chiller Maintenance machine is special for chiller tube cleaning, boiler tube cleaning, condenser tube cleaning, heat exchanger tube cleaning. It can clean 6.35~25.4mm tubes.



►Related Products



►The importance to provide Chiller Maintenance

First, the importance of central air conditioning water system cleaning
The central air conditioning water system is divided into cooling water and chilled water two systems:
1, the cooling water system mainly relies on the cooling tower cooling, water in the cooling tower due to splash and activity will be in full contact with the air, and then the air a lot of dust, microorganisms, soluble salt and corrosive gases into the cooling tower, so that the concentration of water impurities continue to increase, which brings a lot of harm to the work of the central air conditioning system.
Damage performance: dust, salt, bacteria, dissolved oxygen, etc. → scale, bacteria, algae, rust → accumulation in the host copper pipe, filter → circulation slows → poor cooling effect → poor refrigeration effect → waste power → shorten the equipment life.
The freezing system is a sealed system, the accumulation of little by little, the dissolved oxygen in the water is very simple to form coil blockage, the corrosion of the unit and pipeline accessories, and then constitute the cooling capacity attenuation and premature damage to the equipment, which directly affects the normal work of the central air conditioning system.
Damage performance: water corrodes the inner wall of the pipeline → rust occurs → block the main coil and fan coil → crack the coil or have no cooling effect → waste power → shorten the service life of the equipment.



►FAQ

Q1. Is it all right to make customer's own brand name?

Yes,every customer can customize their own brand



Q2. Are you a manufactuer or trading company?

We are lead manufacturer in this area.



Q3. Can you do the design for us?

Yes,We have a professional design team can customized the products you want.



Q4. How can I get a sample to check your quality?

Express delivery of samples to your country, sea ship, air ship also ok.

Technical Data Sheet
Model no.	KT-202
Name	Tube cleaner
Voltage	220-240V/110-120V
Power	550W
Brush Speed	0-1400rpm (stepless adjustable)
Flexible Shaft	6/8/10/12mm*7.6m (can be customized)
Weight	27.5KG
Size	405*225*400mm
Package	Export standard package
Applicable Tube's Diameter	6.5-25.4mm
Standard Packing List	Main unit: 1pc Flexible shaft: 7.6m*2pcs Brush: 10pcs Water pipe: 20m*1pc Foot switch: 1pc
Advantages	1.Double control lines with one spare line 2.Wheel design for portable 3.Water is inlet on shaft directly to protect the main unit from water 4.steel flexible shaft 5.Brushing with water jetting 6.Foot switch
