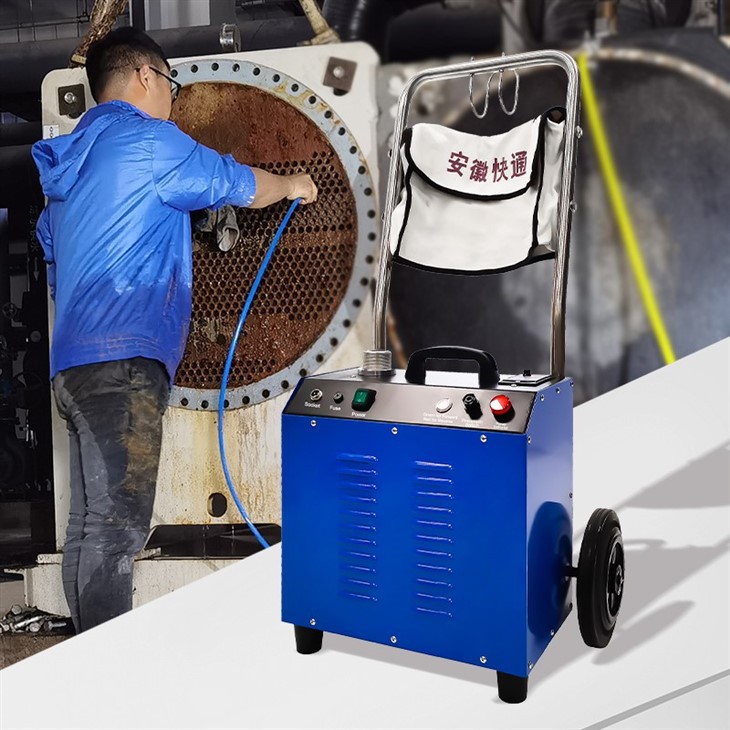

Tube Cleaning

►Advantages

1. KT-202 tube cleaning machine is wheeled portable designed.

2. 550W powerfull can clean blocked tubes.

3.  Adjustable speed (0-1400 RPM).

4. Tube Cleaning Machine can be used with the alloy drill head to dredge the blocked tubes.

5. The water is directly inlet on the flexible shaft, so the water does not need to enter the main unit, which can protect the main engine.

6. Water spray design while brushing, water can wash the dirt that can be washed down the pipe.



★Fast powerfull rotation

To prevent to dredge the blocked tubes



★Brush speed is stepless adjustment

To improve the cleaning speed Applicable to a wider range of working conditions



★Water is inlet on the shaft

Spray water while brushing Have a better cleaning effect



★Pedal pneumatic switch

Avoid electric shock during cleaning operation Easy to use



►Specification



►Product Details



►Application



KT-202 Tube Cleaning Machine is special for chiller tube cleaning, boiler tube cleaning, condenser tube cleaning, heat exchanger tube cleaning. It can clean 6.35~25.4mm tubes.



►Related Products



►The importance for tube cleaning machine

As a kind of heat exchanger widely used in industrial production at present, the tubular heat exchanger is mainly composed of shell, tube bundle, tube plate, baffle plate and seal. It has the advantages of good heat transfer effect, large area and simple structure. In the long-term use of tubular heat exchangers, there will be surface rust and scale phenomenon, if not cleaned in time, it will lead to higher and higher thermal resistance of dirt deposits, which greatly reduces the heat transfer efficiency.
tube cleaning machine isThe solution to this phenomenon is to clean and maintain the tubular heat exchanger in time, quickly remove dirt, which can ensure the normal operation of the production device and restore the normal production state, but most teachers do not attach great importance to the scale cleaning of the equipment, and the cleaning method of the tubular heat exchanger is not very understanding, so the equipment is in perennial operation, the dirt is becoming more and more serious. Lead to equipment pipe blockage, seriously shorten the service life of the heat exchanger.



►FAQ

Q1. Is it all right to make customer's own brand name?

Yes,every customer can customize their own brand



Q2. Are you a manufactuer or trading company?

We are lead manufacturer in this area.



Q3. Can you do the design for us?

Yes,We have a professional design team can customized the products you want.



Q4. How can I get a sample to check your quality?

Express delivery of samples to your country, sea ship, air ship also ok.

Technical Data Sheet
Model no.	KT-202
Name	Tube cleaner
Voltage	220-240V/110-120V
Power	550W
Brush Speed	0-1400rpm (stepless adjustable)
Flexible Shaft	6/8/10/12mm*7.6m (can be customized)
Weight	27.5KG
Size	405*225*400mm
Package	Export standard package
Applicable Tube's Diameter	6.5-25.4mm
Standard Packing List	Main unit: 1pc Flexible shaft: 7.6m*2pcs Brush: 10pcs Water pipe: 20m*1pc Foot switch: 1pc
Advantages	1.Double control lines with one spare line 2.Wheel design for portable 3.Water is inlet on shaft directly to protect the main unit from water 4.steel flexible shaft 5.Brushing with water jetting 6.Foot switch
