What are the main cleaning equipment for central air conditioning ducts?
1. Duct cleaning robot, manual lifting arm, can clean air ducts of different pipe diameters by changing brushes of different sizes; at the same time, by changing the moving mechanism at the front end of the lifting arm, changing the brush rotation mode, it can be cleaned Way pipes and circular pipes; the brush is driven by a pneumatic motor. The advantages of the pneumatic motor are small size, light weight, high power, and can work for a long time.
The robot is equipped with a wide-angle camera, and the signal is transmitted to the monitor via a cable. The entire cleaning process can be monitored outside the tube and the robot can be manipulated to avoid obstacles. The long lowering arm and the brush can be dismantled as a module as a whole, so that the cleaning robot becomes a flexible surveying robot, equipped with different probes, which can measure parameters such as network speed, temperature, humidity, and dust concentration in the pipe. The robot can control The box is remotely controlled to change the traveling speed, direction, brush speed, and light brightness. The crawler-type traveling mechanism can ensure that it can easily cross obstacles without tilting.

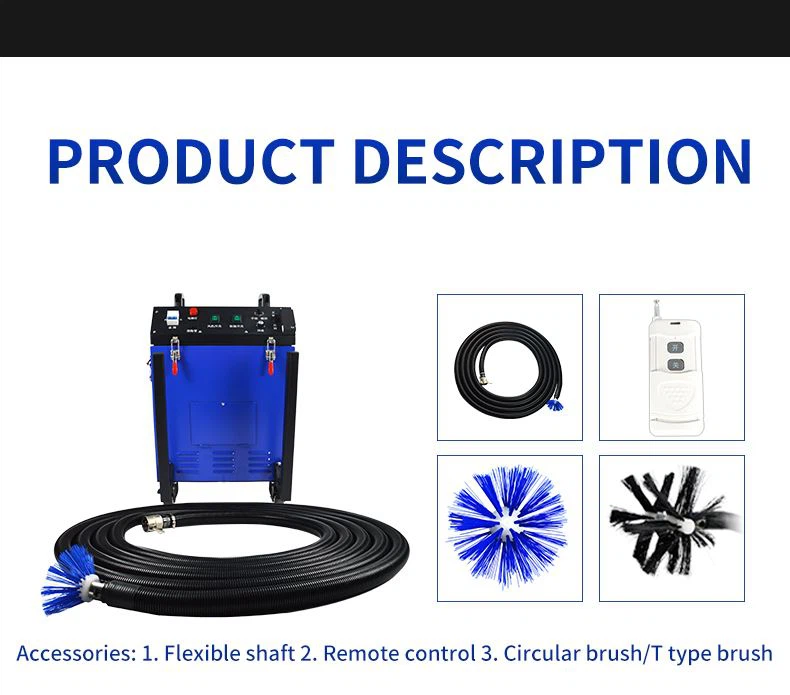

2. Flexible shaft brush cleaning machine
As an auxiliary equipment for robot cleaning, manual operation is required. For small pipes that cannot be cleaned by robots, the brush can be selected according to the size of the pipe, which can completely remove the dirt in the pipe. A camera can be added to the front of the flexible shaft and monitored by a monitor. To the work process. The brush is controlled by a foot switch and can be rotated forwards and backwards.
The power is 2200W and the maximum air volume is 4000m3/4. It is connected to the air pipe through a hose to form a negative pressure in the cleaning pipe area and remove dust and other dirt in the pipe. Multiple units can be used in parallel as needed to make the effect more powerful.
